Zhangjiagang Tianyi Machinery Factory

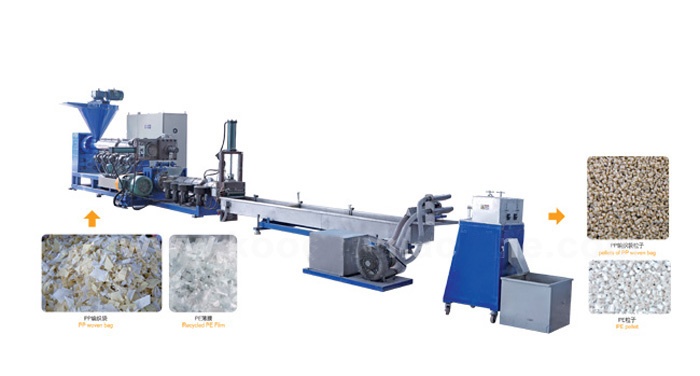

The customer can select a suitable machine among double segment style, three-segment style, and four-segment style according to production requirements. The special design can assure the good compounding effect and more solid pellet. This kind of production line is especially suitable for recycling dirty waste and production of repelletizing.
Gear box: high-torque design; Iow-noise; smooth running
Special barrel design can assure better compounding effect so as to improve the problem of black point and chromatism.
Equipped with a force feeder and hydraulic screen changers according to material's special character, it can get a better capacity and save more power.
Vacuum or common gas exhaust system, which fascinates getting rid of damp, waste gas, impurity, can ensure a more stable extrusion and more solid pellets.

Main Technical Parameter



Model	FSJ100-100	FSJ120-120	FSJ150-150	FSJ180-180
Mothership out
L/D	25 -30	25 -30	25 -30	25 -30
Power of main motor(kw)	45-55	55-75	75-90	90-110
Power of heating(kw)	40	45	55	70
Rotational speed(RPM)	0-120	、0-120	0-110	0-110

Son machine out
L/D	10 -15	10 -15	10 -15	8-15
Power of main motor(kw)	22	30	37	45
Power of heating(kw)	25	30	35	45
Rotational speed(RPM)	0-120	0-120	0-110	0-110
Output(kg/h)	100-150	150-220	200-300	280-380

Main parameter:



Model	SJ -65	SJ -80	SJ -100	SJ -120	SJ -150	SJ-200
Screw Dia(mm)	65	80	100	120	150	200
L/D	28-30	28-30	28-30	28-30	28-30	28-30
Output (kg/hr)	60-80	80-100	100-150	200-300	300-400	400-500
